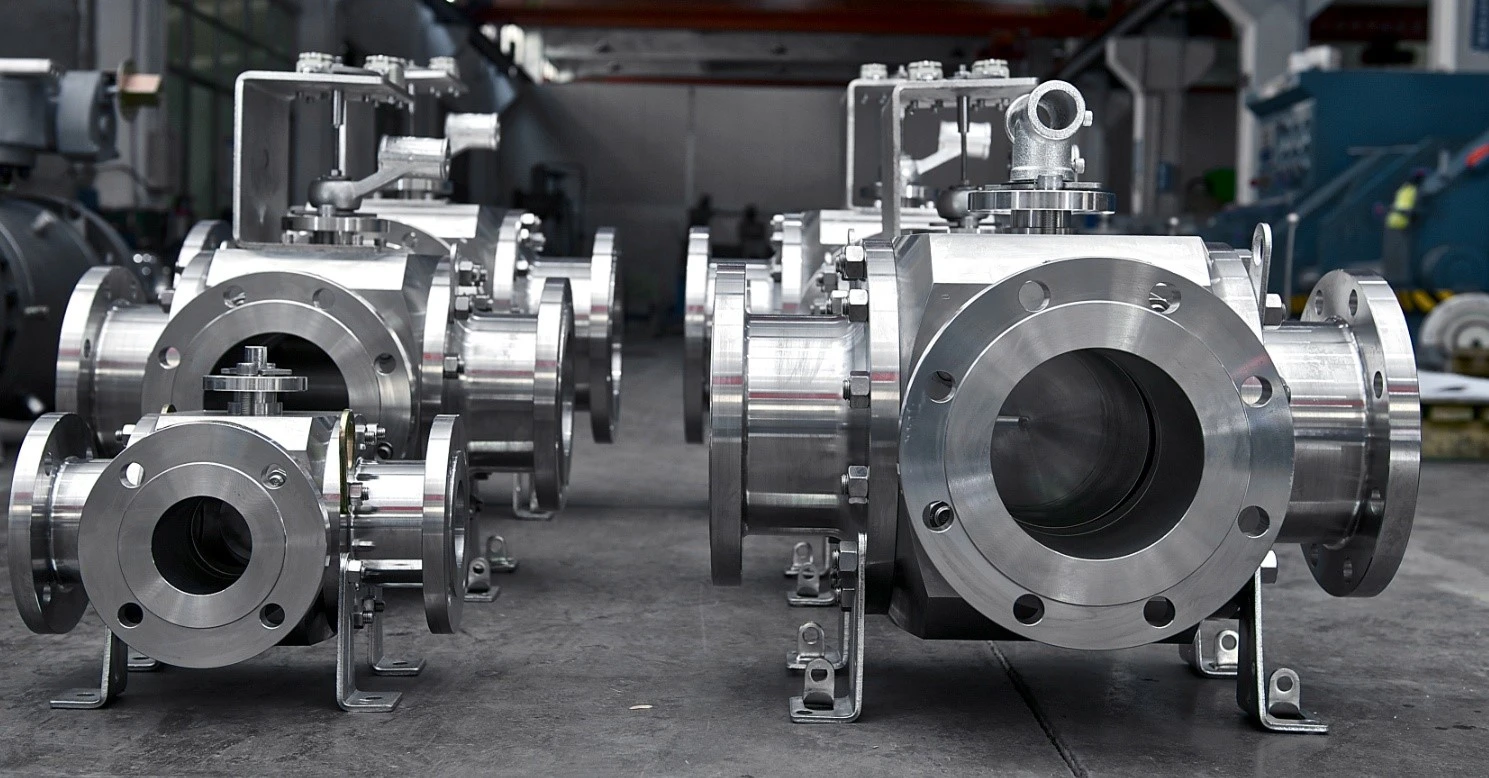

Three-way Ball Valve
Three-way ball valve is a multi-channel valve with an L-shaped or T-shaped flow channel inside the valve body. The connection and disconnection between different channels are controlled by rotating the ball. The three-way ball valve has the advantages of simple structure, convenient operation, and good sealing performance. It is widely used in fluid control systems in industries such as petroleum, chemical, metallurgy, electricity, and pharmaceuticals.
Classification Of Three-way Ball Valves
- Classification by flow channel form:
L-shaped three-way ball valve: The flow channel is L-shaped, which can realize the switching of two flow directions, for example, two in and one out or one in and two out.
T-shaped three-way ball valve: The flow channel is T-shaped, which can realize the switching of three flow directions, for example, confluence, diversion, and reversing.
- Classification by connection method:
Flange connection three-way ball valve
Threaded connection three-way ball valve
Welding connection three-way ball valve
- Classification by drive method:
Manual three-way ball valve
Pneumatic three-way ball valve
Electric three-way ball valve
Hydraulic three-way ball valve
Features Of Three-way Ball Valve
Advantages:
Simple structure, small size, light weight: The structure of the three-way ball valve is relatively simple, with a small number of parts, so it is small in size, light in weight, and easy to install and maintain.
Easy to operate, quick opening and closing
The three-way ball valve can be opened and closed by rotating 90 degrees, which is easy to operate and quick to open and close.
Good sealing performance
The three-way ball valve adopts a line contact seal between the ball and the valve seat, which has good sealing performance and can achieve zero leakage.
Small flow resistance
The flow channel of the three-way ball valve is straight-through, with small flow resistance and small pressure drop loss.
Wide range of application
The three-way ball valve can be applied to a variety of media such as water, steam, oil, gas, etc., and the appropriate material and structure can be selected according to different media and working conditions.
Disadvantages:
Poor Regulation Performance
Three-way ball valves are mainly used to cut off and connect media, and the accuracy of regulating flow is not high.
Degradation Of Sealing Performance Under High Temperature And High Pressure
Under high temperature and high pressure conditions, the sealing performance of three-way ball valves may decrease.
Applicable Environment Of Three-way Ball Valves
Three-way ball valves are widely used in the following environments:
Pipeline systems that require diversion, confluence or reversal: For example, material distribution in chemical production, hot water circulation in heating systems, etc.
- Pipeline systems that need to quickly cut off or connect media: For example, oil and gas pipelines, fire protection systems, etc.
- Occasions with high requirements for valve sealing performance: For example, food, medicine and other industries.
Selection Of Three-way Ball Valves
When selecting a three-way ball valve, the following factors need to be considered:
- Media type: Different media require valves of different materials.
- Pressure level: The working pressure of the valve needs to be greater than or equal to the pressure of the pipeline system.
- Temperature range: The working temperature of the valve needs to adapt to the temperature of the medium.
- Connection method: Select the appropriate valve connection method according to the connection method of the pipeline system.
- Flow requirements: Select the appropriate valve diameter according to the flow requirements.
- Drive mode: Select manual, pneumatic, electric or hydraulic drive mode according to actual needs.
